网上已经有许多资料研究MoleBox这个壳，这里同样记录一下研究这个壳的过程，本人也在学习中，如有错误还请指出，谢谢！
OEP
找到OEP并不困难，ESP定律即可

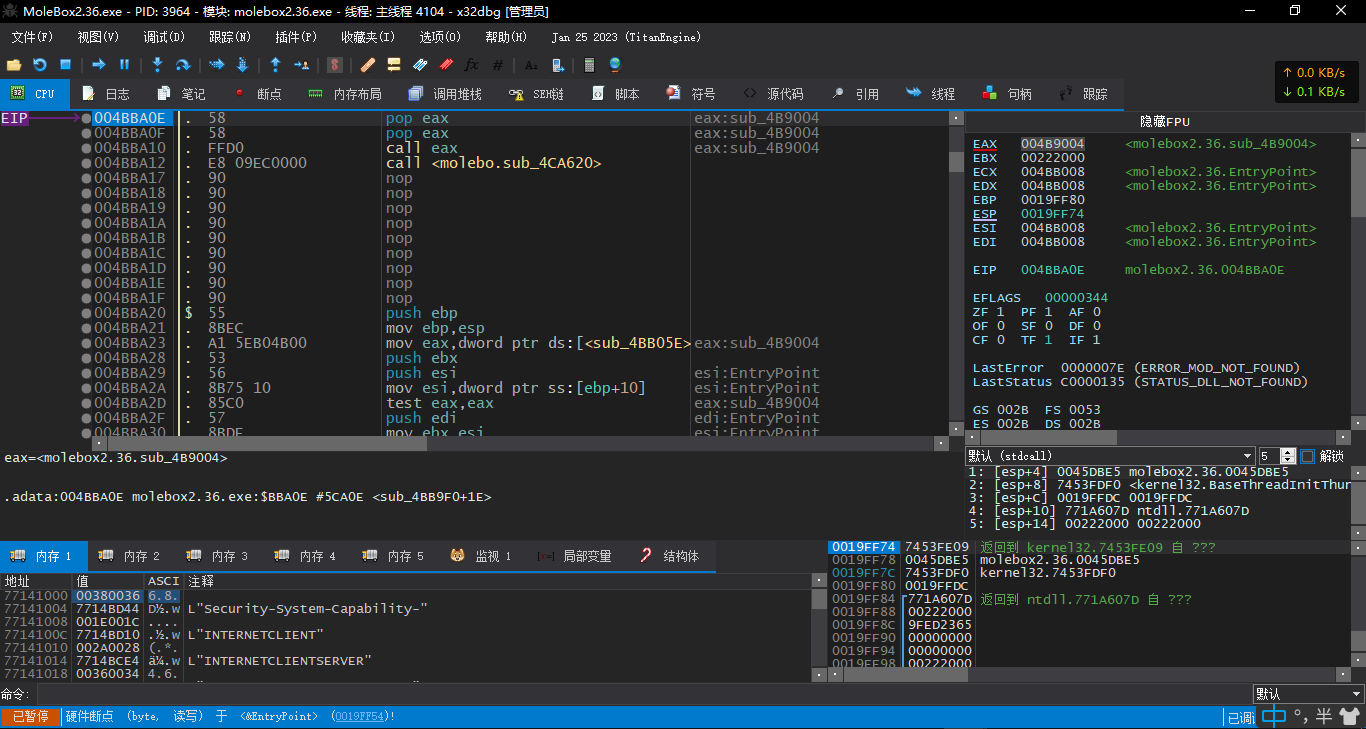

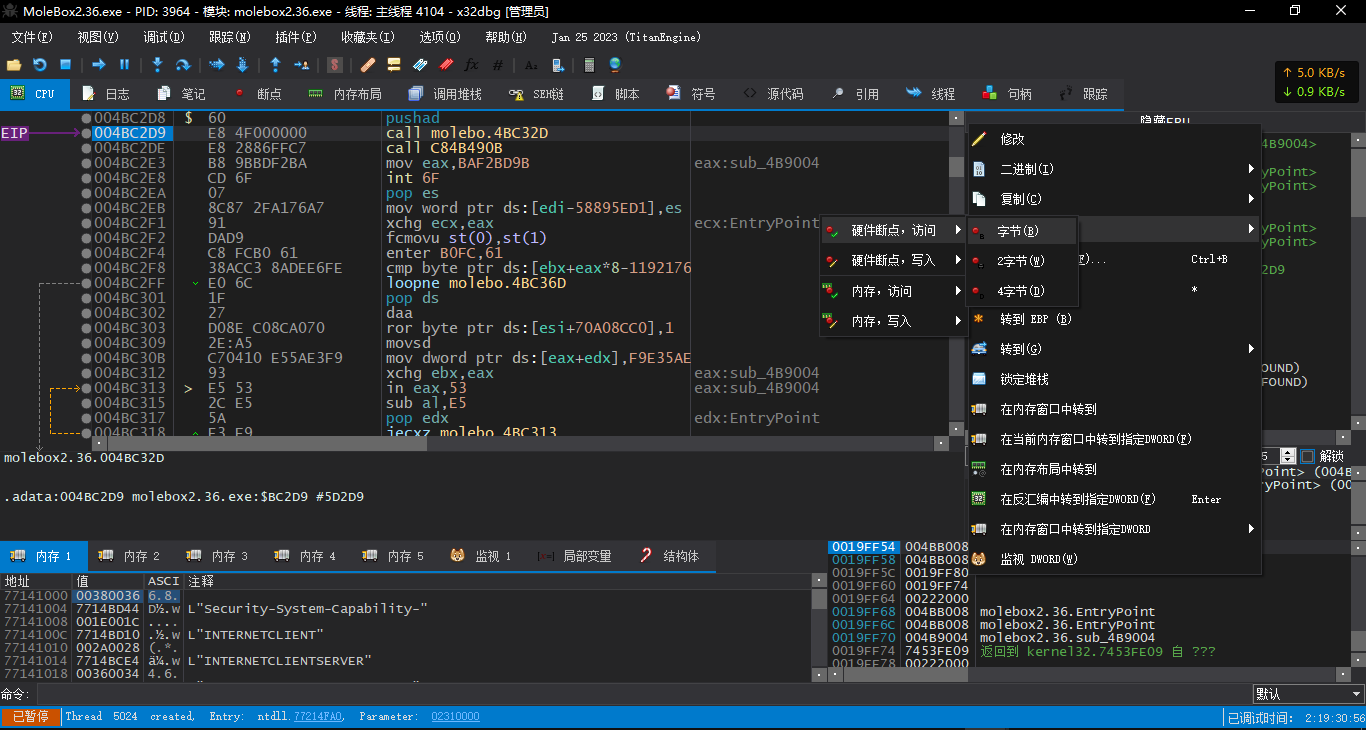

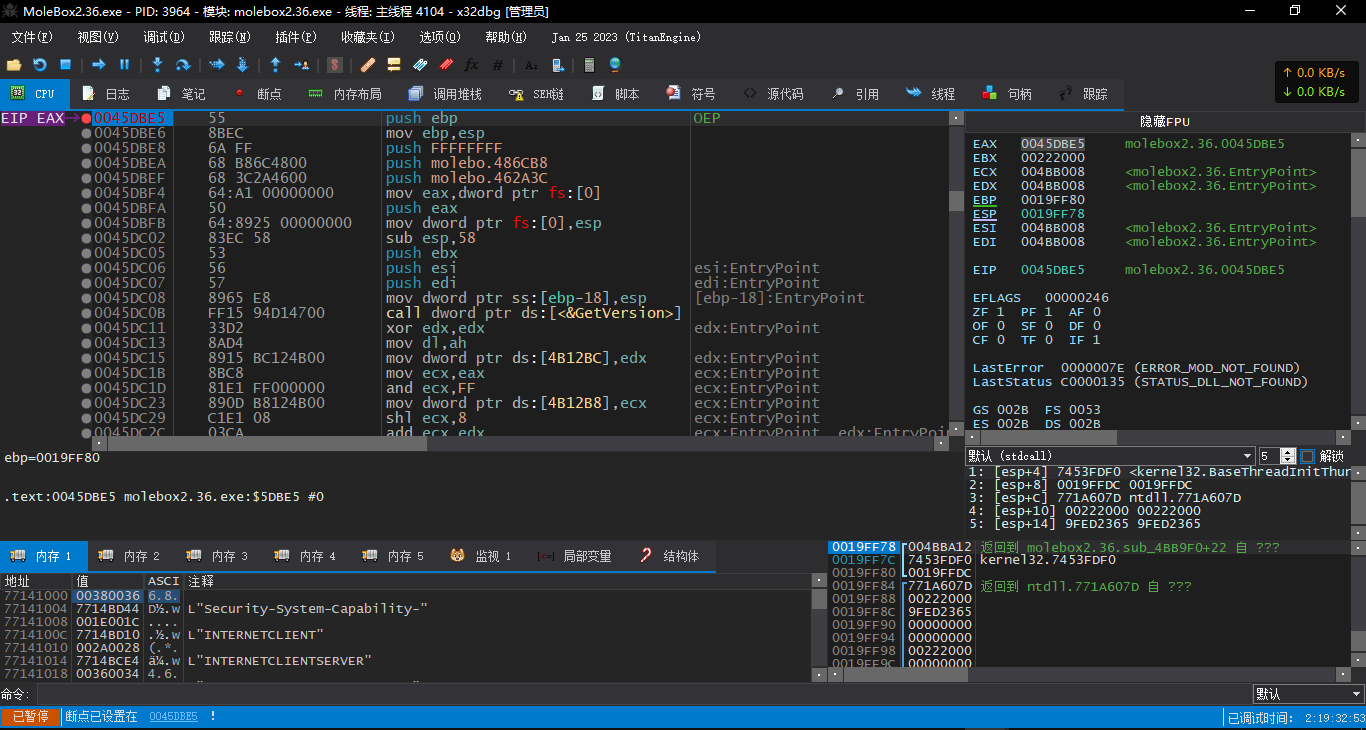

在pushad后栈顶下硬件访问断点，之后运行停在004BBA0E

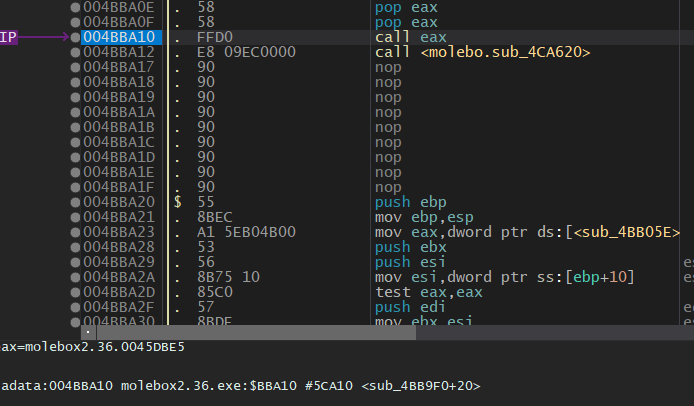

此处的eax即为OEP
修复IAT

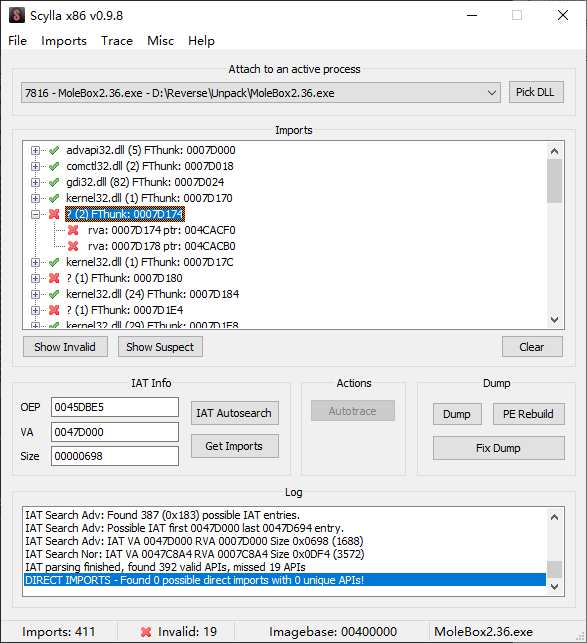

来到原始入口点尝试修复IAT，发现有许多无效的指针
这些是壳对IAT的加密，可以在调试器中找第一个无效的指针下断点
这里在0047D174（rva:0007D174）下硬件写入断点然后重新运行程序
运行几次会在无关的地点断住
可以看到这里周围还没有有效的地址指针，这里还不是解密IAT的地方

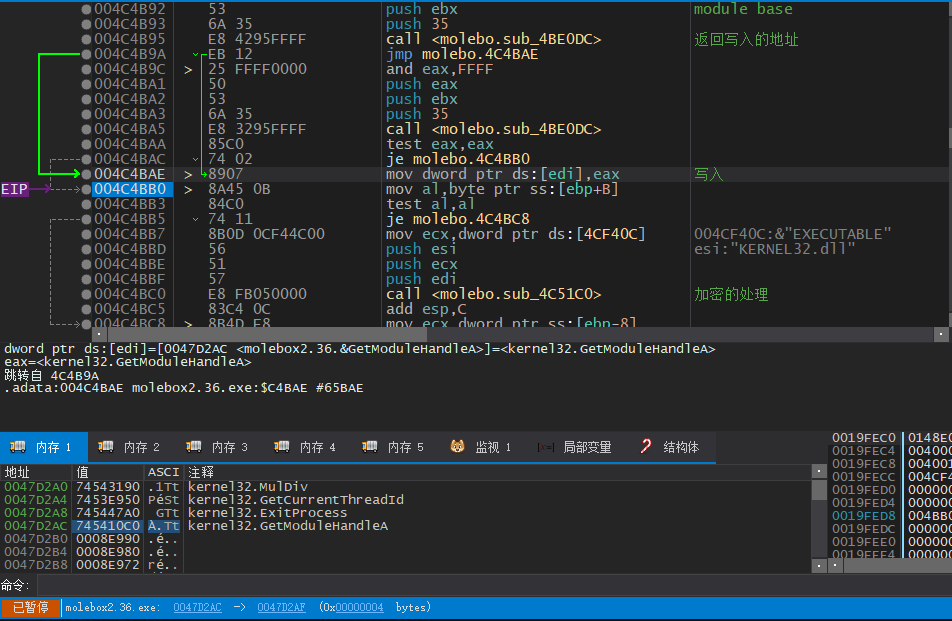

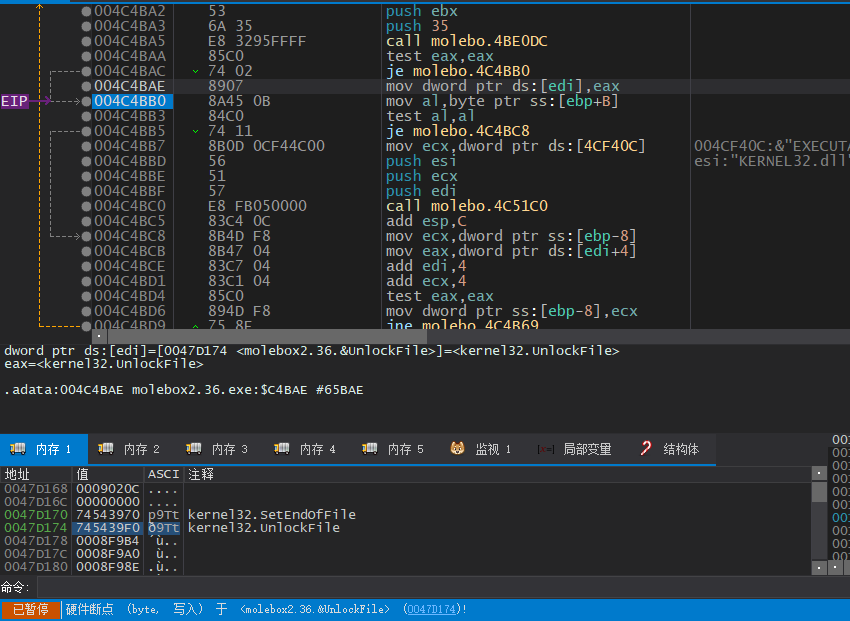

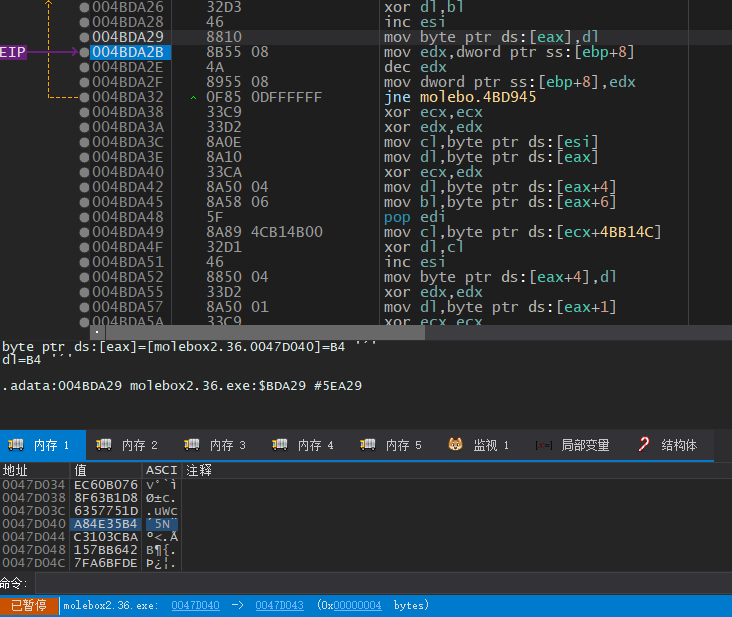

直到运行到0404BAE处，这里对[edi]写入后被硬件断点断住
这里我们看到写入的值是有效的指针，我们再运行一次

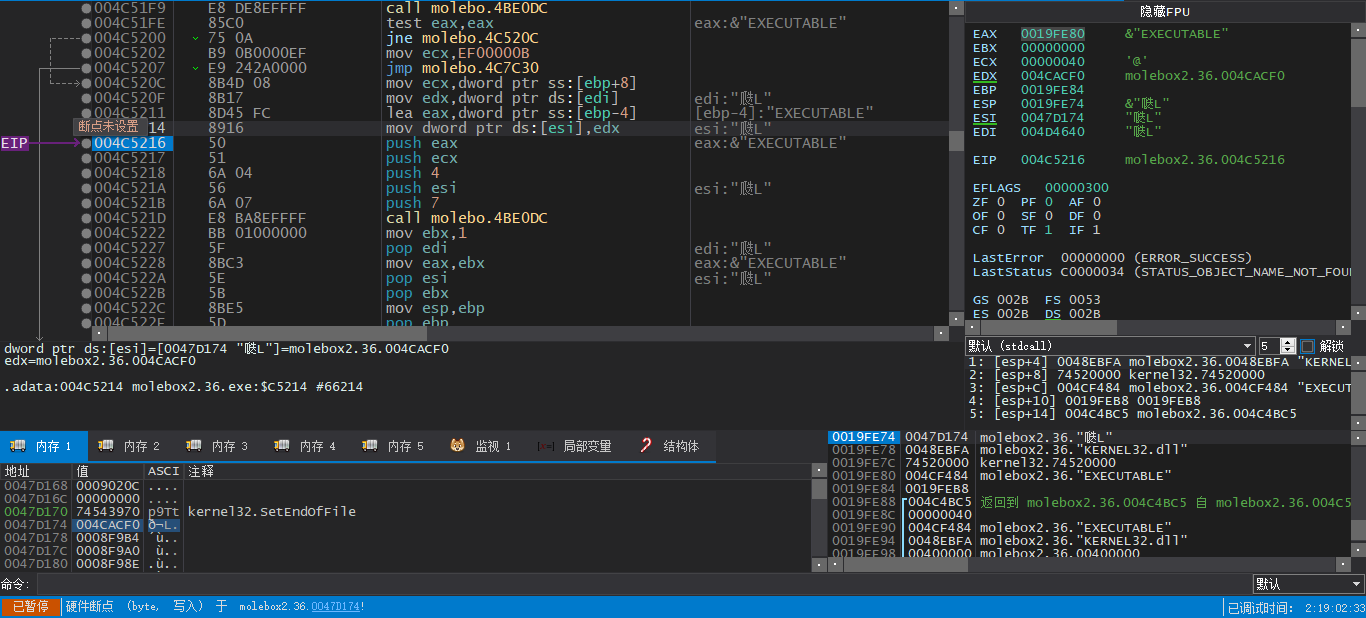

程序被断在004C5214的后一条代码，此处0047D174的值已经被改变了，即壳对IAT的加密，这里指向的是壳的代码，由壳跳转向真正的API调用
我们已经发现了对IAT再加密的指令，我们可以将其NOP掉，使其不能在IAT解密后进行加密

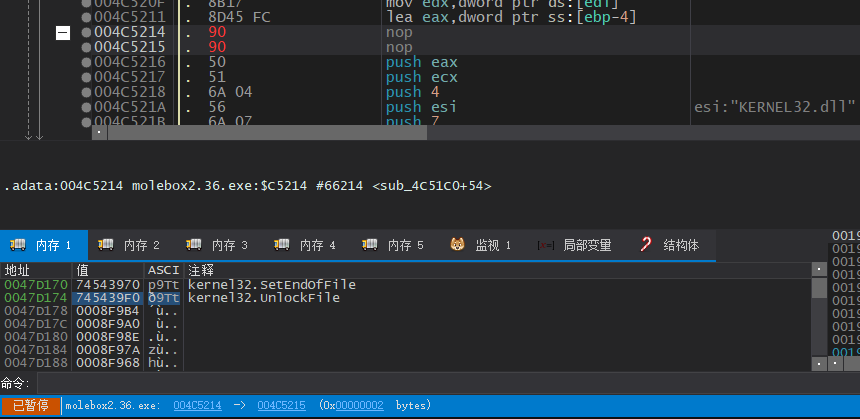

记录这里的地址，然后重新运行程序，当我们断在其初次解密时就可以转到004C5214将其NOP掉

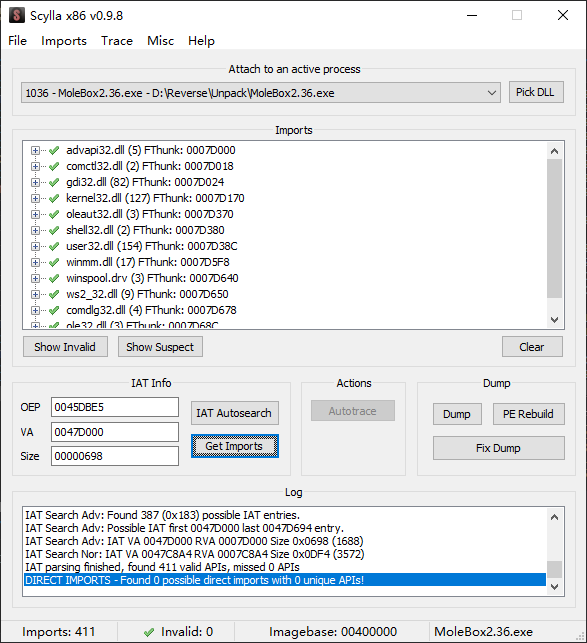

然后在OEP设置断点，直接运行到OEP即可脱壳修复
特殊处理

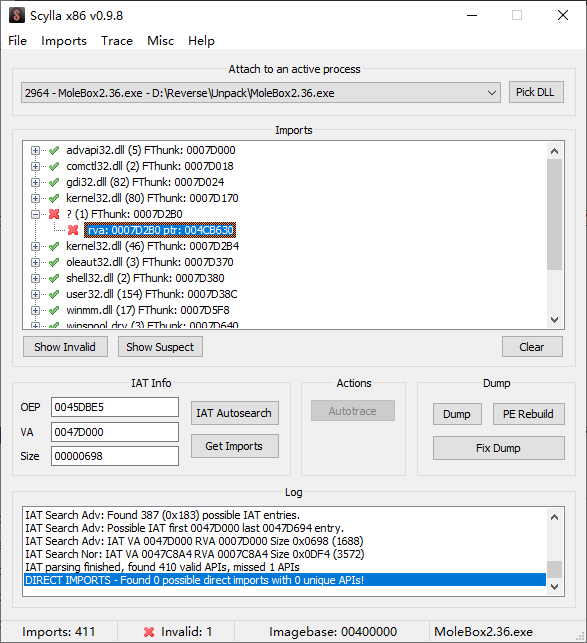

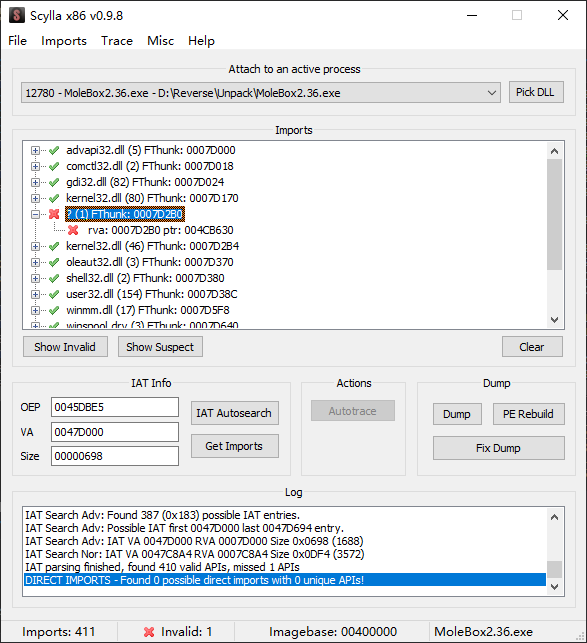

参考的其他资料到NOP掉再次加密IAT这里结束了，但是这里的例子还有一处无效的指针
我们仍然尝试找一下写入这里的代码，对0047D2B0下硬件写入断点并重新运行，在壳代码解密后，要记得将004C5214NOP掉，以确保我们只有这一个地址需要修复
这里我们发现，这个地址在第一次被写入的时候就已经被写入了指向壳代码的指针，我们如何发现真正的API地址？先继续跟下去
004C4B69 | 8B45 F8 | mov eax,dword ptr ss:[ebp-8] |
004C4B6C | 8B00 | mov eax,dword ptr ds:[eax] |
004C4B6E | 85C0 | test eax,eax |
004C4B70 | 74 69 | je molebo.4C4BDB |
004C4B72 | 8B4D F4 | mov ecx,dword ptr ss:[ebp-C] |
004C4B75 | 8B51 F8 | mov edx,dword ptr ds:[ecx-8] |
004C4B78 | 85D2 | test edx,edx |
004C4B7A | 75 07 | jne molebo.4C4B83 |
004C4B7C | 8A4D FE | mov cl,byte ptr ss:[ebp-2] |
004C4B7F | 84C9 | test cl,cl |
004C4B81 | 74 2D | je molebo.4C4BB0 |
004C4B83 | A9 00000080 | test eax,80000000 |
004C4B88 | 75 12 | jne molebo.4C4B9C |
004C4B8A | 8B55 0C | mov edx,dword ptr ss:[ebp+C] |
004C4B8D | 8D4410 02 | lea eax,dword ptr ds:[eax+edx+2] |
004C4B91 | 50 | push eax | API name
004C4B92 | 53 | push ebx | module base
004C4B93 | 6A 35 | push 35 |
004C4B95 | E8 4295FFFF | call <molebo.sub_4BE0DC> | 返回写入的地址
004C4B9A | EB 12 | jmp molebo.4C4BAE |
004C4B9C | 25 FFFF0000 | and eax,FFFF |
004C4BA1 | 50 | push eax |
004C4BA2 | 53 | push ebx |
004C4BA3 | 6A 35 | push 35 |
004C4BA5 | E8 3295FFFF | call <molebo.sub_4BE0DC> |
004C4BAA | 85C0 | test eax,eax |
004C4BAC | 74 02 | je molebo.4C4BB0 |
004C4BAE | 8907 | mov dword ptr ds:[edi],eax | 写入
004C4BB0 | 8A45 0B | mov al,byte ptr ss:[ebp+B] |
004C4BB3 | 84C0 | test al,al |
004C4BB5 | 74 11 | je molebo.4C4BC8 |
004C4BB7 | 8B0D 0CF44C00 | mov ecx,dword ptr ds:[4CF40C] | 004CF40C:&"EXECUTABLE"
004C4BBD | 56 | push esi | esi:"KERNEL32.dll"
004C4BBE | 51 | push ecx |
004C4BBF | 57 | push edi |
004C4BC0 | E8 FB050000 | call <molebo.sub_4C51C0> | 加密的处理
004C4BC5 | 83C4 0C | add esp,C |
004C4BC8 | 8B4D F8 | mov ecx,dword ptr ss:[ebp-8] |
004C4BCB | 8B47 04 | mov eax,dword ptr ds:[edi+4] |
004C4BCE | 83C7 04 | add edi,4 |
004C4BD1 | 83C1 04 | add ecx,4 |
004C4BD4 | 85C0 | test eax,eax |
004C4BD6 | 894D F8 | mov dword ptr ss:[ebp-8],ecx |
004C4BD9 | 75 8E | jne molebo.4C4B69 |在跟了一个CALL之后，我们大概可以分析出以上内容，壳在解密IAT前会将API的名称和所在模块的基址作为参数送到一个CALL中，由这个CALL计算出一个写入IAT的值

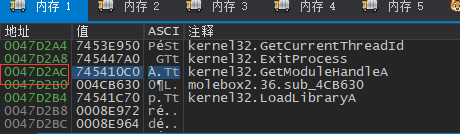

了解以上之后，我们在出问题的IAT指针的前一个指针上下硬件写入断点
之后重新运行程序，同样在壳代码解密后先需要NOP掉对IAT再加密的指令，之后运行到对0047D2AC的写入就可以了

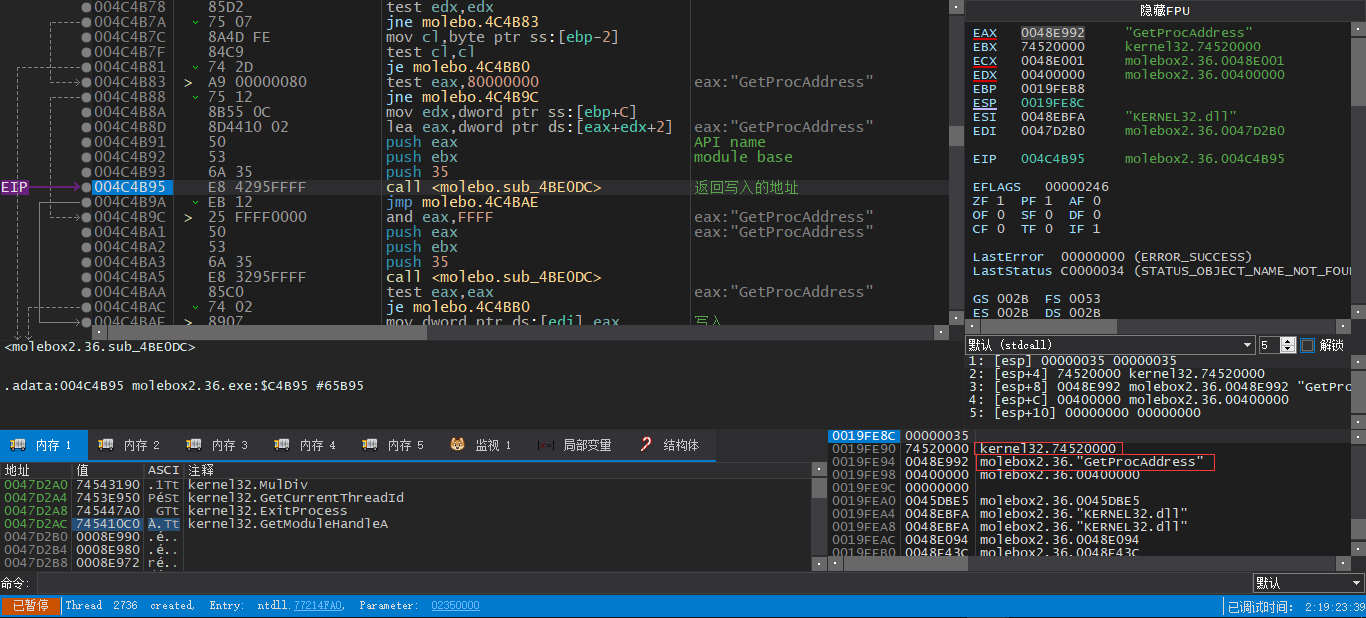

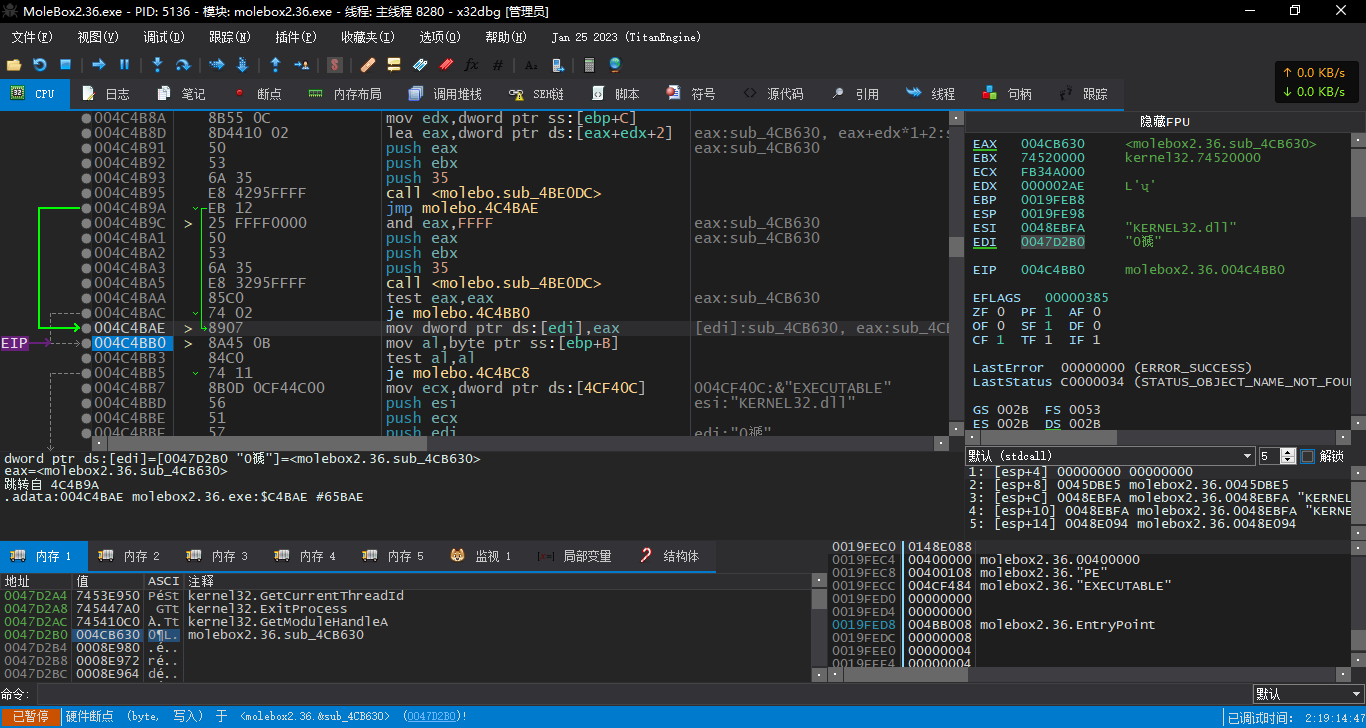

在这里我们需要慢慢单步跟下去，再次来到004C4B95处，已经是获取下一条API地址的时候了
我们可以看到这里给进去的API名称是GetProcAddress
我们再次单步

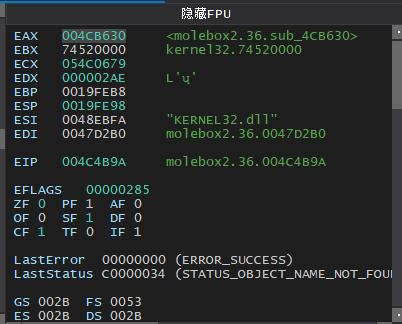

与获取其他API地址不同，它直接返回了壳代码的地址
但我们已经知道了API的名字，可以手动查找一下API的地址，并且手动写入IAT中

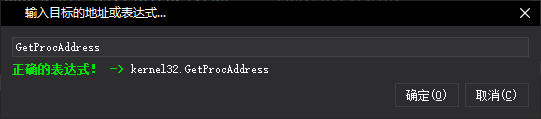

在OEP下断点，运行停在OEP后，在调试器中转到GetPrcoAddress

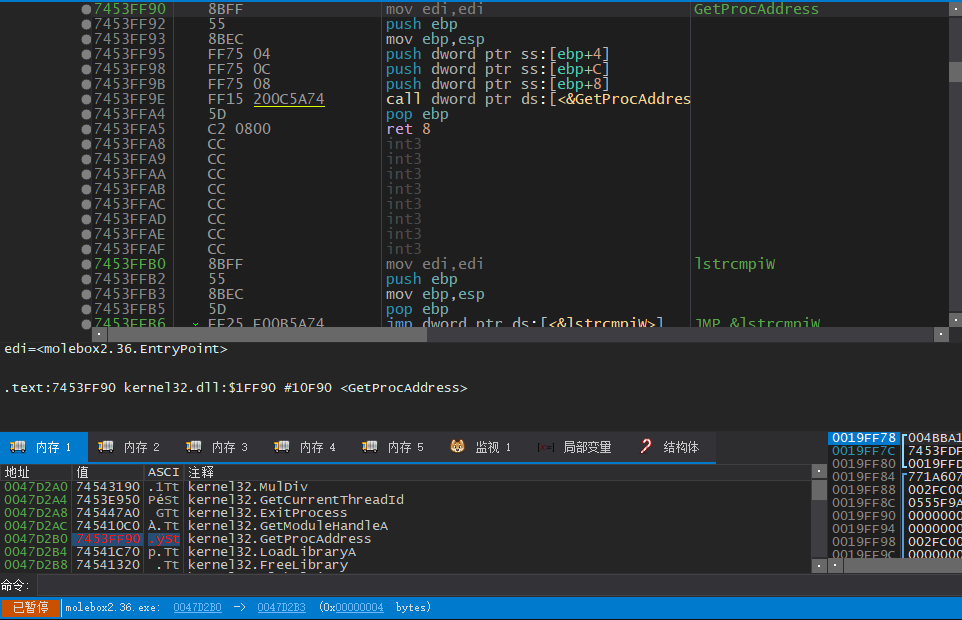

将对应IAT指针的值修改为GetProcAddress的地址即可

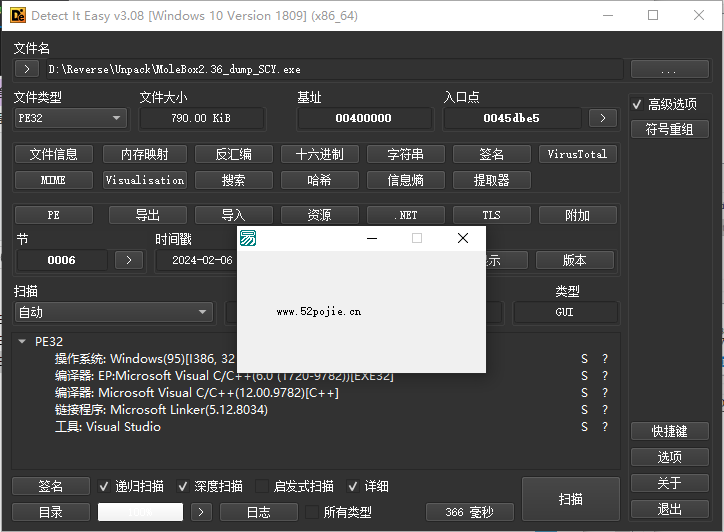

（该文件来源于吾爱论坛的求助帖）
进一步探索
壳代码最终也会调用真正的API，能否通过壳的代码找到最终调用的API地址并还原到IAT？
这里假设我们的程序有如上的IAT，并且当前EIP在OEP处
我们在调试器中转到004CB630，直接将EIP设置到该处
004CB630 | 55 | push ebp |
004CB631 | 8BEC | mov ebp,esp |
004CB633 | 6A FF | push FFFFFFFF |
004CB635 | 68 F8D24B00 | push molebo.4BD2F8 |
004CB63A | 68 14F34B00 | push <molebo.sub_4BF314> |
004CB63F | 64:A1 00000000 | mov eax,dword ptr fs:[0] |
004CB645 | 50 | push eax |
004CB646 | 64:8925 00000000 | mov dword ptr fs:[0],esp |
004CB64D | 83EC 1C | sub esp,1C |
004CB650 | 53 | push ebx |
004CB651 | 56 | push esi |
004CB652 | 57 | push edi |
004CB653 | 8965 E8 | mov dword ptr ss:[ebp-18],esp |
004CB656 | 8B75 0C | mov esi,dword ptr ss:[ebp+C] |
004CB659 | 8BC6 | mov eax,esi |
004CB65B | C1E8 10 | shr eax,10 |
004CB65E | 74 19 | je molebo.4CB679 |
004CB660 | 68 48444D00 | push molebo.4D4448 | 4D4448:"DllGetClassObject"
004CB665 | 56 | push esi |
004CB666 | 6A 45 | push 45 |
004CB668 | E8 6F2AFFFF | call <molebo.sub_4BE0DC> |
004CB66D | 85C0 | test eax,eax |
004CB66F | 75 08 | jne molebo.4CB679 |
004CB671 | 8B4D 08 | mov ecx,dword ptr ss:[ebp+8] |
004CB674 | E8 E7A0FFFF | call <molebo.sub_4C5760> |
004CB679 | C745 FC 00000000 | mov dword ptr ss:[ebp-4],0 |
004CB680 | 56 | push esi |
004CB681 | 8B4D 08 | mov ecx,dword ptr ss:[ebp+8] |
004CB684 | 51 | push ecx |
004CB685 | 6A 35 | push 35 |
004CB687 | E8 502AFFFF | call <molebo.sub_4BE0DC> |
004CB68C | 8BF0 | mov esi,eax |
004CB68E | 8975 E4 | mov dword ptr ss:[ebp-1C],esi |
004CB691 | 83CF FF | or edi,FFFFFFFF |
004CB694 | 897D FC | mov dword ptr ss:[ebp-4],edi |
004CB697 | 85F6 | test esi,esi |
004CB699 | 74 46 | je molebo.4CB6E1 |发现代码如上，我们可以逐指令跟过去，进入每个CALL进行观察

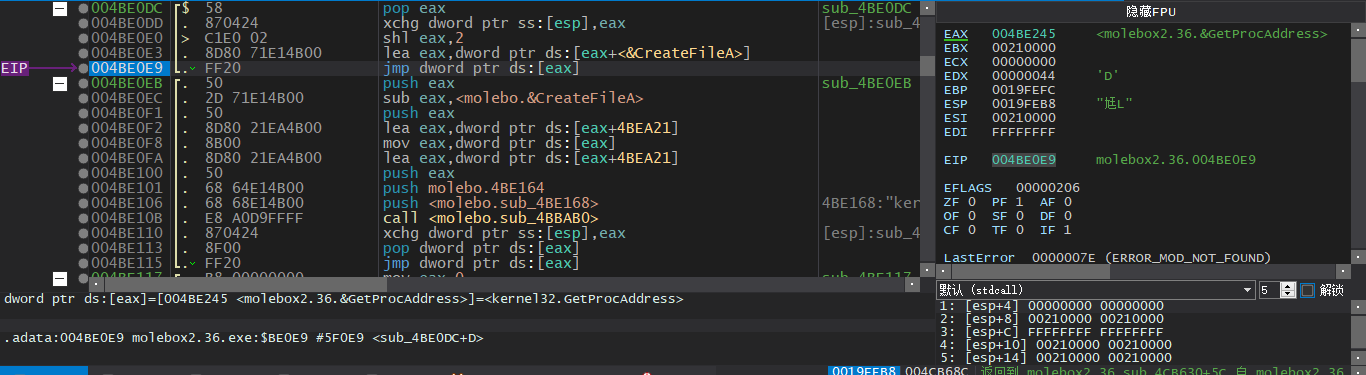

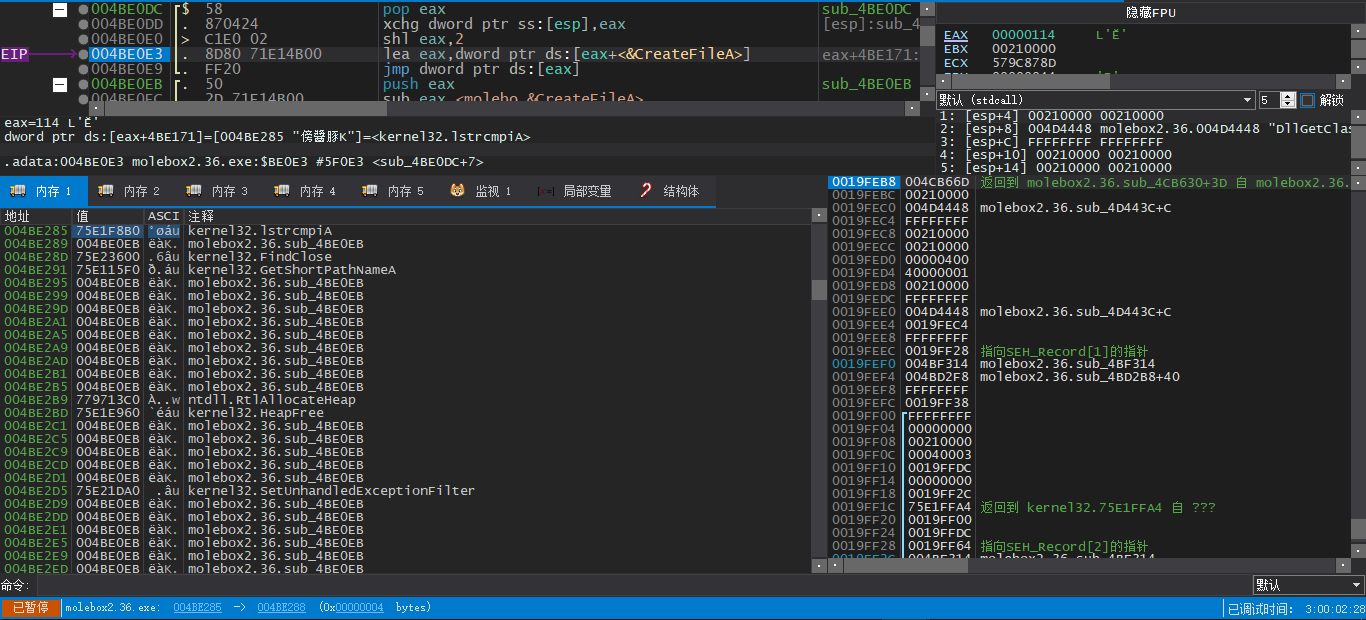

到004CB668处的CALL F7进入：
004BE0DC | 58 | pop eax |
004BE0DD | 870424 | xchg dword ptr ss:[esp],eax | [esp]:sub_4CB630+3D
004BE0E0 | C1E0 02 | shl eax,2 |
004BE0E3 | 8D80 71E14B00 | lea eax,dword ptr ds:[eax+<&CreateFileA>] | eax+4BE171:sub_4BE168+2A
004BE0E9 | FF20 | jmp dword ptr ds:[eax] |前两句代码将返回地址弹到eax中，此时栈顶为进入CALL前推入的0x45，程序在将其左移两位后与一处地址相加，得到了最终跳转的位置
可见壳自己维护着一张类似IAT的表，用于壳代码里对一些API的调用，当前将调用的函数是lstrcmpiA，这是否是此处真正调用的API？
我们回到用户代码中，继续向下，因为在004CB687处还有一个向外的调用，进入该CALL
发现这次调用的地址是GetProcAddress，我们要确定该函数是否为真正调用的API地址，要根据壳函数的返回值来判断
004CB680 | 56 | push esi |
004CB681 | 8B4D 08 | mov ecx,dword ptr ss:[ebp+8] |
004CB684 | 51 | push ecx |
004CB685 | 6A 35 | push 35 |
004CB687 | E8 502AFFFF | call <molebo.sub_4BE0DC> |
004CB68C | 8BF0 | mov esi,eax |
004CB68E | 8975 E4 | mov dword ptr ss:[ebp-1C],esi |
004CB691 | 83CF FF | or edi,FFFFFFFF |
004CB694 | 897D FC | mov dword ptr ss:[ebp-4],edi |
004CB697 | 85F6 | test esi,esi |
004CB699 | 74 46 | je molebo.4CB6E1 |回到壳代码，我们看到这里将返回值存在了esi寄存器中，然后判断esi的值是否为0，先来到该函数的结尾处
004CB6D9 | 897D FC | mov dword ptr ss:[ebp-4],edi |
004CB6DC | E8 18000000 | call molebo.4CB6F9 |
004CB6E1 | 8BC6 | mov eax,esi |
004CB6E3 | 8B4D F0 | mov ecx,dword ptr ss:[ebp-10] |
004CB6E6 | 64:890D 00000000 | mov dword ptr fs:[0],ecx |
004CB6ED | 5F | pop edi |
004CB6EE | 5E | pop esi |
004CB6EF | 5B | pop ebx |
004CB6F0 | 8BE5 | mov esp,ebp |
004CB6F2 | 5D | pop ebp |

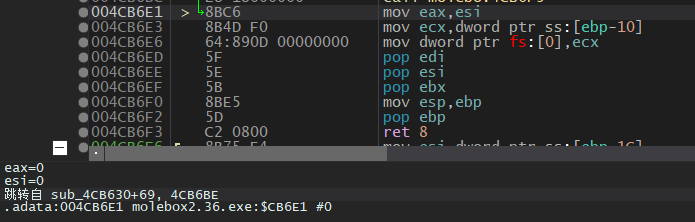

004CB6F3 | C2 0800 | ret 8 |这个函数中只有004CB6F3处是返回，004CB6E1处对返回值进行赋值，是esi寄存器的值，我们可以大致猜测GetProcAddress为IAT中真正调用的API
注：最终结果仍为猜测，直接设置EIP不能确保环境与实际调用环境相同，并且壳的跳转函数不仅是一种形式，因此此种方式得到结果仅作参考
进二步探索

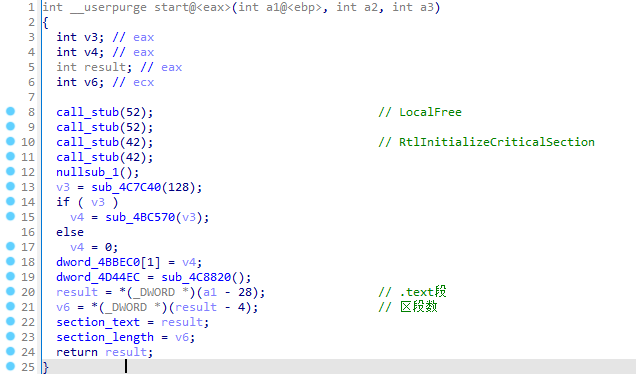

这里使用IDA的反汇编视图进行分析，我们将加壳后文件加载进IDA，在经历了一些跳转之后，我们来到如下
.adata:004BC2D8 loc_4BC2D8: ; CODE XREF: start:loc_4BB04A↑j
.adata:004BC2D8 60 pusha
.adata:004BC2D9 E8 4F 00 00 00 call sub_4BC32D
.adata:004BC2D9
.adata:004BC2D9 ; ---------------------------------------------------------------------------
.adata:004BC2DE E8 28 dw 28E8h
.adata:004BC2E0 86 FF db 86h, 0FFh
.adata:004BC2E2 C7 B8 dw 0B8C7h
...sub_4BC32D如下：
.adata:004BC32D sub_4BC32D proc near ; CODE XREF: start+12D1↑p
.adata:004BC32D E8 BE F6 FF FF call sub_4BB9F0
.adata:004BC32D
.adata:004BC32D
.adata:004BC32D
.adata:004BC32D
.adata:004BC32D
.adata:004BC32D sub_4BC32D endp
.adata:004BC32D
.adata:004BC32D ; ---------------------------------------------------------------------------
.adata:004BC332 CE 9C 01 00 dd 19CCEh
.adata:004BC336 42 db 42h ; B
.adata:004BC337 DB db 0DBh
.adata:004BC338 00 db 0
.adata:004BC339 00 db 0
...sub_4BB9F0如下：
.adata:004BB9F0 ; 这里栈应该为
.adata:004BB9F0 ; 004BC332
.adata:004BB9F0 ; 004BC2DE
.adata:004BB9F0 ; ...
.adata:004BB9F0 ;
.adata:004BB9F0 ; Attributes: noreturn
.adata:004BB9F0
.adata:004BB9F0 ; void __cdecl __noreturn sub_4BB9F0(int)
.adata:004BB9F0 sub_4BB9F0 proc near ; CODE XREF: sub_4BC32D↓p
.adata:004BB9F0
.adata:004BB9F0 a2= dword ptr 4
.adata:004BB9F0
.adata:004BB9F0 8B 44 24 04 mov eax, [esp+a2]
.adata:004BB9F4 50 push eax ; esp+4读到的是004BC2DE，然后将其压栈
.adata:004BB9F4 ; 此时栈为
.adata:004BB9F4 ; 004BC2DE
.adata:004BB9F4 ; 004BC332
.adata:004BB9F4 ; 004BC2DE
.adata:004BB9F5 8B 44 24 04 mov eax, [esp+4]
.adata:004BB9F9 50 push eax ; 这里esp+4读到004BC332，然后将其压栈
.adata:004BB9F9 ; 此时栈为
.adata:004BB9F9 ; 004BC332
.adata:004BB9F9 ; 004BC2DE
.adata:004BB9F9 ; 004BC332
.adata:004BB9F9 ; 004BC2DE
.adata:004BB9FA E8 B1 FD FF FF call sub_4BB7B0 ; 上面两条push即为该函数的参数
.adata:004BB9FA
.adata:004BB9FA sub_4BB9F0 endp
.adata:004BB9FA直至这里仍在调用其他的函数，但代码已经明显比上面更多了，上面的两层调用在call之下都有许多数据，它们是被加密的指令，在当前函数，将上两层调用的返回地址作为参数给进了sub_4BB7B0
该函数非常精彩，里面先对两个参数中的一个指向的加密数据解密，代码如下：
.adata:004BB7EE 6A 00 push 0 ; lpModuleName
.adata:004BB7F0 FF 15 00 B0 4B 00 call ds:GetModuleHandleA
.adata:004BB7F0
.adata:004BB7F6 68 40 D4 00 00 push 0D440h
.adata:004BB7FB 6A 40 push PAGE_EXECUTE_READWRITE
.adata:004BB7FD 8B F0 mov esi, eax
.adata:004BB7FF FF D7 call edi ; LocalAlloc
.adata:004BB7FF
.adata:004BB801 8B 7D 0C mov edi, [ebp+ptr_004BC2DE] ; 这里根据上层调用的传参重命名了参数，传参应该是指向加密数据的地址
.adata:004BB804 89 45 F8 mov [ebp+buffer], eax ; LocalAlloc申请到的内存空间地址
.adata:004BB807 8D 87 EA FB FF FF lea eax, [edi-416h] ; 计算结果为004BBEC8，同样指向一堆加密数据
.adata:004BB80D 8B C8 mov ecx, eax
.adata:004BB80F 8D 90 00 04 00 00 lea edx, [eax+400h] ; 004BBEC8+400=4BC2C8，指向这堆加密数据的末尾部分
.adata:004BB815 3B C2 cmp eax, edx
.adata:004BB817 73 18 jnb short loc_4BB831 ; jump if 004BBEC8 >= 004BC2C8，不应该跳转
.adata:004BB817
.adata:004BB819
.adata:004BB819 loc_4BB819: ; CODE XREF: sub_4BB7B0+7F↓j
.adata:004BB819 69 C0 0D 66 19 00 imul eax, 19660Dh
.adata:004BB81F 8B 19 mov ebx, [ecx] ; 从004BBEC8开始解密数据
.adata:004BB821 05 75 F3 6E 3C add eax, 3C6EF375h
.adata:004BB826 33 D8 xor ebx, eax
.adata:004BB828 89 19 mov [ecx], ebx ; 异或
.adata:004BB82A 83 C1 04 add ecx, 4
.adata:004BB82D 3B CA cmp ecx, edx
.adata:004BB82F 72 E8 jb short loc_4BB819 ; jump if 当前解密位置 < 加密数据末尾部分
.adata:004BB82F解密后数据如下：
004BBEC8 27 48 45 52 45 49 53 42 4F 4F 54 43 4F 44 ..'HEREISBOOTCOD
004BBED6 45 27 00 00 00 00 00 00 00 00 05 00 00 00 2E 74 E'.............t
004BBEE6 65 78 74 00 00 00 9E B8 07 00 00 10 00 00 00 60 ext....¸.......`
004BBEF6 04 00 00 10 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BBF06 00 00 20 00 00 60 2E 72 64 61 74 61 00 00 EE 32 .. ..`.rdata..î2
004BBF16 01 00 00 D0 07 00 00 70 00 00 00 70 04 00 00 00 ...Ð...p...p....
004BBF26 00 00 00 00 00 00 00 00 00 00 40 00 00 40 2E 64 ..........@..@.d
004BBF36 61 74 61 00 00 00 A8 19 02 00 00 10 09 00 00 60 ata...¨........`
004BBF46 00 00 00 E0 04 00 00 00 00 00 00 00 00 00 00 00 ...à............
004BBF56 00 00 40 00 00 C0 2E 72 73 72 63 00 00 00 58 59 ..@..À.rsrc...XY
004BBF66 00 00 00 00 00 00 00 60 00 00 00 40 05 00 00 00 .......`...@....
004BBF76 00 00 00 00 00 00 00 00 00 00 40 00 00 40 2E 74 ..........@..@.t
004BBF86 65 78 74 00 00 00 A0 CA 01 00 00 90 0B 00 00 10 ext... Ê........
004BBF96 01 00 00 A0 05 00 00 00 00 00 00 00 00 00 00 00 ... ............
004BBFA6 00 00 20 00 00 E0 00 00 00 00 00 00 00 00 00 00 .. ..à..........
004BBFB6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BBFC6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BBFD6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BBFE6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BBFF6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC006 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC016 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC026 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC036 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC046 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC056 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC066 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC076 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC086 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC096 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC0A6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC0B6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC0C6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC0D6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC0E6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC0F6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC106 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC116 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC126 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC136 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC146 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC156 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC166 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC176 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC186 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC196 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC1A6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC1B6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC1C6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC1D6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC1E6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC1F6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC206 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC216 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC226 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC236 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC246 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC256 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC266 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC276 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC286 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC296 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC2A6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC2B6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
004BC2C6 00 00 00 ... 不难发现，这是一个节区头
接着看代码：
.adata:004BB831 loc_4BB831: ; CODE XREF: sub_4BB7B0+67↑j
.adata:004BB831 8B 5D 08 mov ebx, [ebp+ptr_004BC332]
.adata:004BB834 81 C7 06 FC FF FF add edi, 0FFFFFC06h ; 4BC2DE + FFFFFC06 = 4BBEE4，指向的是.text区段
.adata:004BB83A 89 7D E4 mov [ebp+ptr_004BBEE4], edi
.adata:004BB83D BA 01 00 00 00 mov edx, 1
.adata:004BB83D
.adata:004BB842
.adata:004BB842 loc_4BB842: ; CODE XREF: sub_4BB7B0+AD↓j
.adata:004BB842 ; sub_4BB7B0+B1↓j
.adata:004BB842 8B 47 FC mov eax, [edi-4] ; 4BBEE0，这里是区段数量：5
.adata:004BB845 2B C2 sub eax, edx
.adata:004BB847 42 inc edx
.adata:004BB848 8D 04 80 lea eax, [eax+eax*4]
.adata:004BB84B 8B 4C C7 0C mov ecx, [edi+eax*8+0Ch] ; 读区段的所占内存大小（VirtualSize）
.adata:004BB84F 8D 04 C7 lea eax, [edi+eax*8] ; edi+eax*8指向IMAGE_SECTION_HEADER结构体开头
.adata:004BB852 8B 40 08 mov eax, [eax+8] ; RVA
.adata:004BB855 03 C1 add eax, ecx
.adata:004BB857 03 CE add ecx, esi ; esi指向模块基址，前面的GetModuleHandle获取
.adata:004BB859 03 C6 add eax, esi ; 解压后段末尾
.adata:004BB85B 3B CB cmp ecx, ebx
.adata:004BB85D 73 E3 jnb short loc_4BB842 ; 4BBEE0，这里是区段数量：5
.adata:004BB85D
.adata:004BB85F 3B D8 cmp ebx, eax
.adata:004BB861 73 DF jnb short loc_4BB842 ; 4BBEE0，这里是区段数量：5
.adata:004BB861
.adata:004BB863 8D 4B 0C lea ecx, [ebx+0Ch] ; 004BC332+C=4BC33E
.adata:004BB866 8B D3 mov edx, ebx
.adata:004BB868 83 E1 FC and ecx, 0FFFFFFFCh ; 4BC33C
.adata:004BB86B 3B C8 cmp ecx, eax
.adata:004BB86D 73 19 jnb short loc_4BB888 ; jump if 4BC33C > 解压后段末尾这里看不太清，没有证据表明这里是解压后段末尾，调试器里针对这个例子两个jnb没有跳转
接下来是继续解密：
.adata:004BB86F loc_4BB86F: ; CODE XREF: sub_4BB7B0+D6↓j
.adata:004BB86F 69 D2 0D 66 19 00 imul edx, 19660Dh
.adata:004BB875 8B 31 mov esi, [ecx]
.adata:004BB877 81 C2 75 F3 6E 3C add edx, 3C6EF375h
.adata:004BB87D 33 F2 xor esi, edx
.adata:004BB87F 89 31 mov [ecx], esi ; 解密4BC33C处代码
.adata:004BB881 83 C1 04 add ecx, 4
.adata:004BB884 3B C8 cmp ecx, eax
.adata:004BB886 72 E7 jb short loc_4BB86F
.adata:004BB886解密后部分数据：
004BC33A A0 C1 FD 56 7F E9 59 97 01 00 E9 54 F0 F1 FF 4C ÁýV.éY...éTðñÿL
004BC34A CB CB DB E9 52 E4 6D FF 62 E9 E7 55 45 23 E9 50 ËËÛéRämÿbéçUE#éP
004BC35A FF 86 72 EB 5D 40 2A FB F4 FF 8B D2 29 DE D7 79 ÿ.rë]@*ûôÿ.Ò)Þ×y
004BC36A D0 B7 FF 41 D1 E9 20 00 00 00 80 FF B7 E5 84 36 зÿAÑé ....ÿ·å.6
004BC37A 16 6B 6F 7F FF 96 0B 07 D8 3A 76 11 57 FF 00 FA .ko.ÿ...Ø:v.Wÿ.ú
004BC38A F9 CA A1 C2 92 A1 FF A6 81 09 8C 8F 21 A6 8B FF ùÊ¡Â.¡ÿ¦....!¦.ÿ
004BC39A 56 3E 40 DD CC 37 2A 5E FF 95 DA DA B2 9D A7 A9 V>@ÝÌ7*^ÿ.ÚÚ².§©
004BC3AA 8B FF 0F D1 E5 92 17 2A 70 D8 FF 6B 06 1D D1 98 .ÿ.Ñå..*pØÿk..Ñ.
004BC3BA 7D F6 C1 FF 5B 96 10 06 30 DD 33 AD FF C7 62 B0 }öÁÿ[...0Ý3.ÿÇb°
...这里数据很乱，仍是加密的数据，继续向下
.adata:004BB888 loc_4BB888: ; CODE XREF: sub_4BB7B0+BD↑j
.adata:004BB888 8B 73 04 mov esi, [ebx+4] ; [004BC336]=DB42
.adata:004BB88B 8B 0B mov ecx, [ebx] ; [004BC332]=19CCE
.adata:004BB88D 8B 53 08 mov edx, [ebx+8] ; [004BC33A]这里数据后两个字节是加密的
.adata:004BB890 56 push esi ; 分配长度：DB42
.adata:004BB891 6A 40 push PAGE_EXECUTE_READWRITE
.adata:004BB893 89 4D 08 mov [ebp+ptr_004BC332], ecx
.adata:004BB896 89 75 F0 mov [ebp+buffer2_length], esi
.adata:004BB899 89 55 EC mov [ebp+var_14], edx
.adata:004BB89C FF 55 F4 call [ebp+ptr_LocalAlloc]
.adata:004BB89C
.adata:004BB89F 8B F8 mov edi, eax
.adata:004BB8A1 85 FF test edi, edi
.adata:004BB8A3 89 7D 0C mov [ebp+ptr_004BC2DE], edi
.adata:004BB8A6 74 08 jz short loc_4BB8B0 ; 内存申请的验证，失败会报错
.adata:004BB8A6
.adata:004BB8A8 81 FE 00 00 01 00 cmp esi, 10000h
.adata:004BB8AE 76 0E jbe short loc_4BB8BE
.adata:004BB8AE
.adata:004BB8B0
.adata:004BB8B0 loc_4BB8B0: ; CODE XREF: sub_4BB7B0+F6↑j
.adata:004BB8B0 6A 00 push 0
.adata:004BB8B2 6A 00 push 0
.adata:004BB8B4 6A 00 push 0
.adata:004BB8B6 68 FF 00 00 EF push 0EF0000FFh
.adata:004BB8BB FF 55 FC call [ebp+ptr_RaiseException]
.adata:004BB8BB
.adata:004BB8BE
.adata:004BB8BE loc_4BB8BE: ; CODE XREF: sub_4BB7B0+FE↑j
.adata:004BB8BE 8B CE mov ecx, esi
.adata:004BB8C0 8D 73 0C lea esi, [ebx+0Ch] ; 解密后的数据 4BC33E
.adata:004BB8C3 8B C1 mov eax, ecx
.adata:004BB8C5 8B 55 0C mov edx, [ebp+ptr_004BC2DE] ; 这个是申请到的内存
.adata:004BB8C8 C1 E9 02 shr ecx, 2 ; 复制长度：36D0
.adata:004BB8CB F3 A5 rep movsd ; edi是上面申请到的内存，从解密后的数据复制36D0个字到申请到的内存处
.adata:004BB8CD 8B C8 mov ecx, eax
.adata:004BB8CF 83 E1 03 and ecx, 3
.adata:004BB8D2 F3 A4 rep movsb ; 复制剩下的2字节
.adata:004BB8D4 8B 75 08 mov esi, [ebp+ptr_004BC332]
.adata:004BB8D7 8B 4D F0 mov ecx, [ebp+buffer2_length]
.adata:004BB8DA 56 push esi ; 19CCE
.adata:004BB8DB 53 push ebx ; 004BC332
.adata:004BB8DC 51 push ecx ; 申请内存长度
.adata:004BB8DD 8B 4D F8 mov ecx, [ebp+buffer]
.adata:004BB8E0 52 push edx ; 申请到的内存起始地址
.adata:004BB8E1 E8 4A FD FF FF call sub_4BB630 ; 这个函数同样用于解密这里又申请了一处内存地址，将esi的值右移两位作为复制字节数，并从4BC33E将解密后的数据复制到申请到的内存区域
最后的sub_4BB630函数又进行了解密操作，在执行完这个函数之后，004BC332已经可以反汇编代码了
继续向下：
.adata:004BB919 loc_4BB919: ; CODE XREF: sub_4BB7B0+159↑j
.adata:004BB919 8B 7D E8 mov edi, [ebp+ptr_kernel32_base]
.adata:004BB91C 6A FF push 0FFFFFFFFh
.adata:004BB91E 68 04 B1 4B 00 push offset aFlushinstructi ; "FlushInstructionCache"
.adata:004BB923 57 push edi
.adata:004BB924 E8 57 04 00 00 call get_proc_address
.adata:004BB924
.adata:004BB929 6A FF push 0FFFFFFFFh
.adata:004BB92B 68 F0 B0 4B 00 push offset aGetcurrentproc ; "GetCurrentProcess"
.adata:004BB930 57 push edi
.adata:004BB931 A3 20 EB 4C 00 mov ds:ptr_FlushInstructionCache, eax
.adata:004BB936 E8 45 04 00 00 call get_proc_address
.adata:004BB936
.adata:004BB93B 8B F8 mov edi, eax
.adata:004BB93D A1 20 EB 4C 00 mov eax, ds:ptr_FlushInstructionCache
.adata:004BB942 83 C4 18 add esp, 18h
.adata:004BB945 85 C0 test eax, eax
.adata:004BB947 75 0E jnz short loc_4BB957 ; 判断是否获取到函数地址，失败会报错
.adata:004BB947
.adata:004BB949 6A 00 push 0
.adata:004BB94B 6A 00 push 0
.adata:004BB94D 6A 00 push 0
.adata:004BB94F 68 FC 00 00 EF push 0EF0000FCh
.adata:004BB954 FF 55 FC call [ebp+ptr_RaiseException]
.adata:004BB954
.adata:004BB957
.adata:004BB957 loc_4BB957: ; CODE XREF: sub_4BB7B0+197↑j
.adata:004BB957 FF D7 call edi ; GetCurrentProcess
.adata:004BB957
.adata:004BB959 56 push esi ; 19CCE
.adata:004BB95A 53 push ebx ; 004BC332
.adata:004BB95B 50 push eax ; 当前进程的句柄（GetCurrentProcess返回值）
.adata:004BB95C A3 84 F2 4C 00 mov ds:current_process_id, eax
.adata:004BB961 FF 15 20 EB 4C 00 call ds:ptr_FlushInstructionCache ; 刷新指令缓存，因为前面更新了代码
.adata:004BB961 ; 下面开始执行解密后代码这里刷新指令缓存
如果应用程序在内存中生成或修改代码，则应调用 FlushInstructionCache 。 CPU 无法检测到更改，并可能执行它缓存的旧代码。
——MSDN
在这之下到函数尾部的代码就是执行解密后的壳代码了，可见分析了这么多，也仅仅是分析了解密壳代码的代码，还没有真正开始分析壳代码
在完成壳代码的解密后，我们可以将程序dump出来，继续在IDA中进行分析
这里壳调用API使用了类似表的东西，借助了函数和传入的偏移计算后得到调用API在表中的偏移，以下是由动态分析得知：
该函数结束后，返回上一层调用
.adata:004BB9F0 8B 44 24 04 mov eax, [esp+arg_0]
.adata:004BB9F4 50 push eax
.adata:004BB9F5 8B 44 24 04 mov eax, [esp+4]
.adata:004BB9F9 50 push eax
.adata:004BB9FA E8 B1 FD FF FF call sub_4BB7B0
.adata:004BB9FA
.adata:004BB9FF 58 pop eax
.adata:004BBA00 E8 DB 0B 00 00 call sub_4BC5E0
.adata:004BBA00
.adata:004BBA05 87 04 24 xchg eax, [esp-4+arg_0]
.adata:004BBA08 58 pop eax
.adata:004BBA09 89 44 24 24 mov [esp-8+arg_28], eax
.adata:004BBA0D 61 popa
.adata:004BBA0E 58 pop eax
.adata:004BBA0F 58 pop eax
.adata:004BBA10 FF D0 call eax
.adata:004BBA10
.adata:004BBA12 E8 09 EC 00 00 call sub_4CA620
.adata:004BBA12我们应该可以发现004BBA10略有眼熟，这就是我们ESP定律找到的popa处，也就是从壳跳转到OEP的代码
这么看来这个壳大致分三步，首先解密壳代码，然后解密原程序，最后跳到原程序的入口点
然后不会了，这里留着以后有能力了再回来写
参考资料
手脱MoleBox(学习历程) - 『脱壳破解区』 - 吾爱破解 - LCG - LSG |安卓破解|病毒分析|www.52pojie.cn
